ΑρχικήUnified Communications Video HW POLY STUDIO X72 ALL-IN-ONE VIDEO BAR WITH TC10 CONTROLLER KIT
Κωδικός: 1.UC.10.P039
Part Number: A4MA7AA#ABB

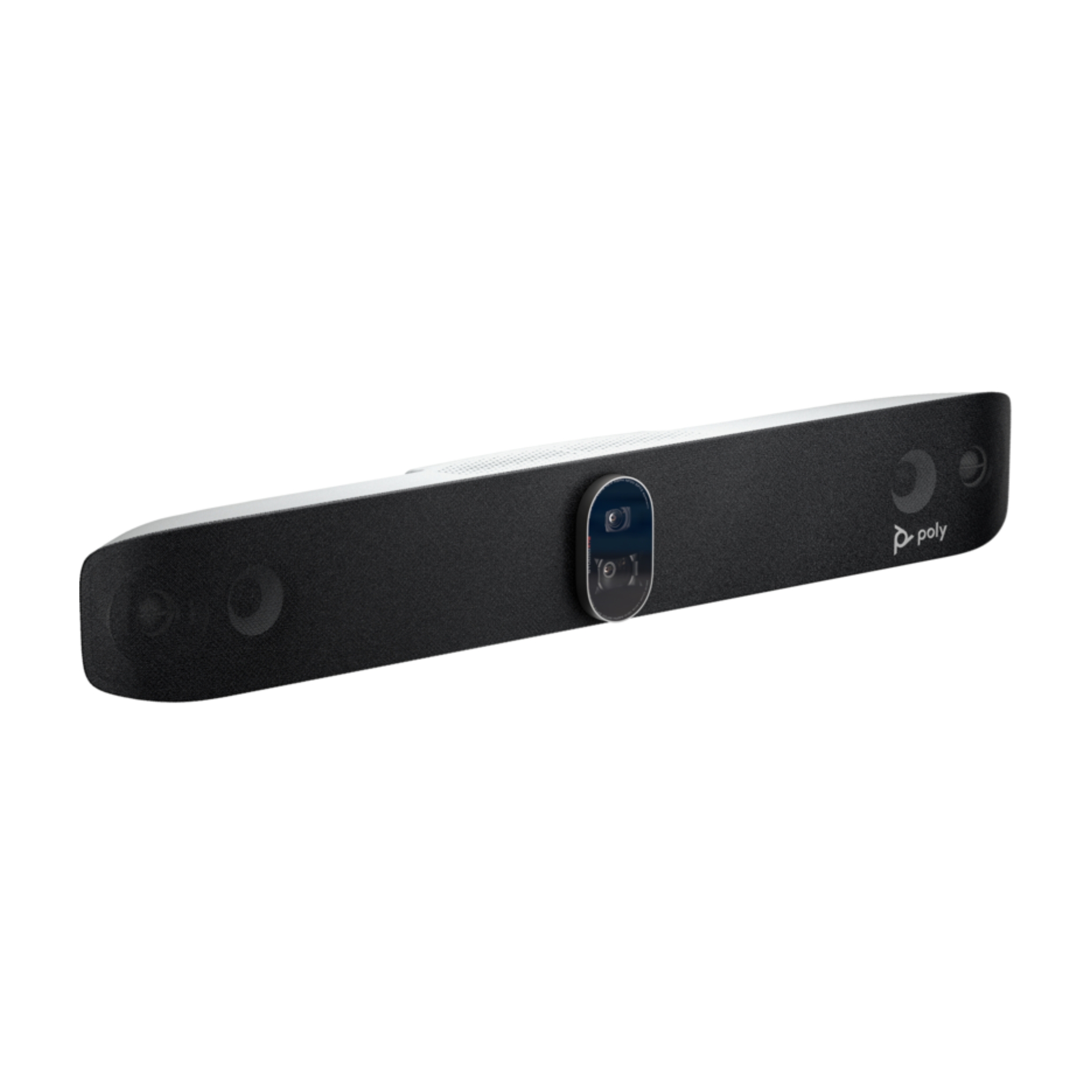

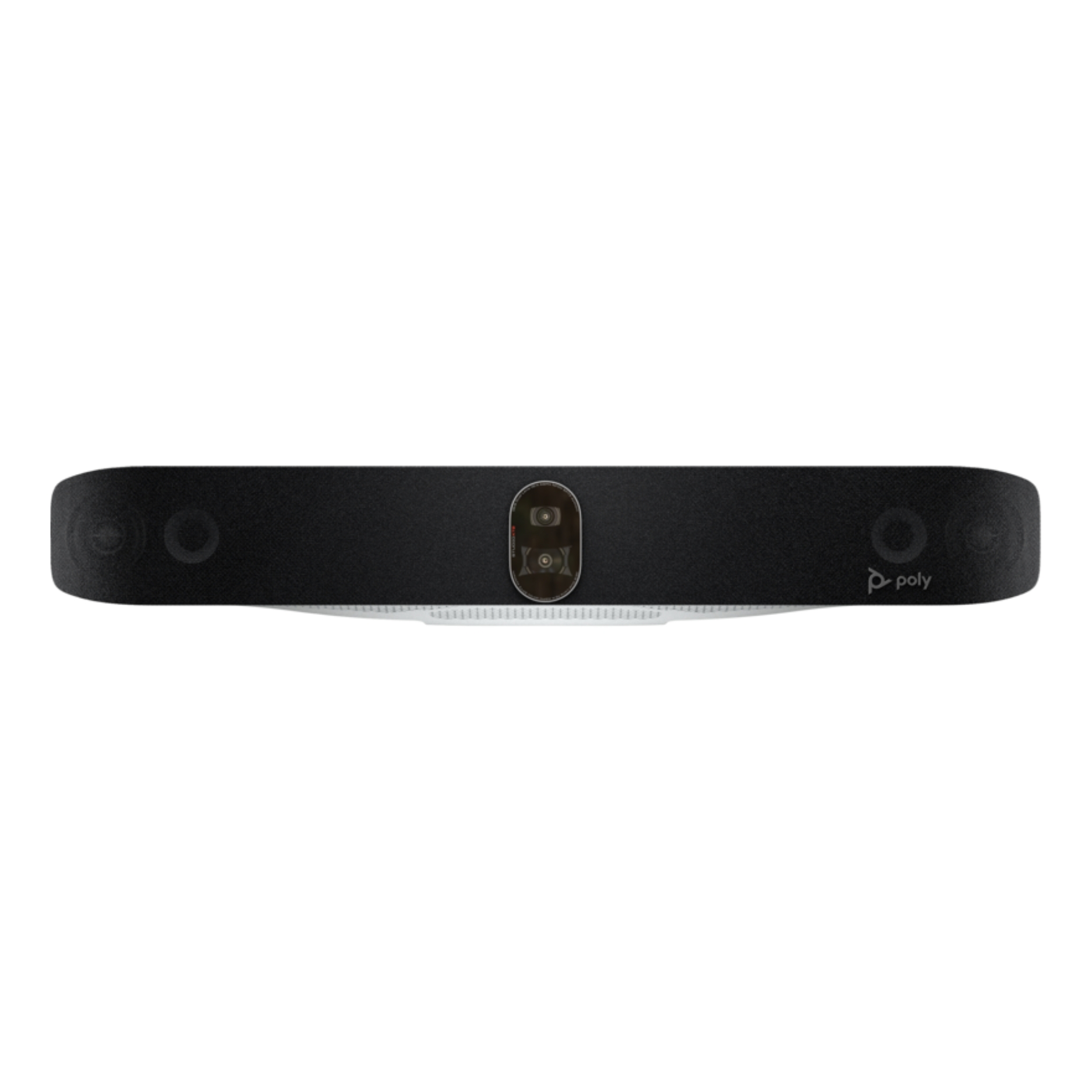

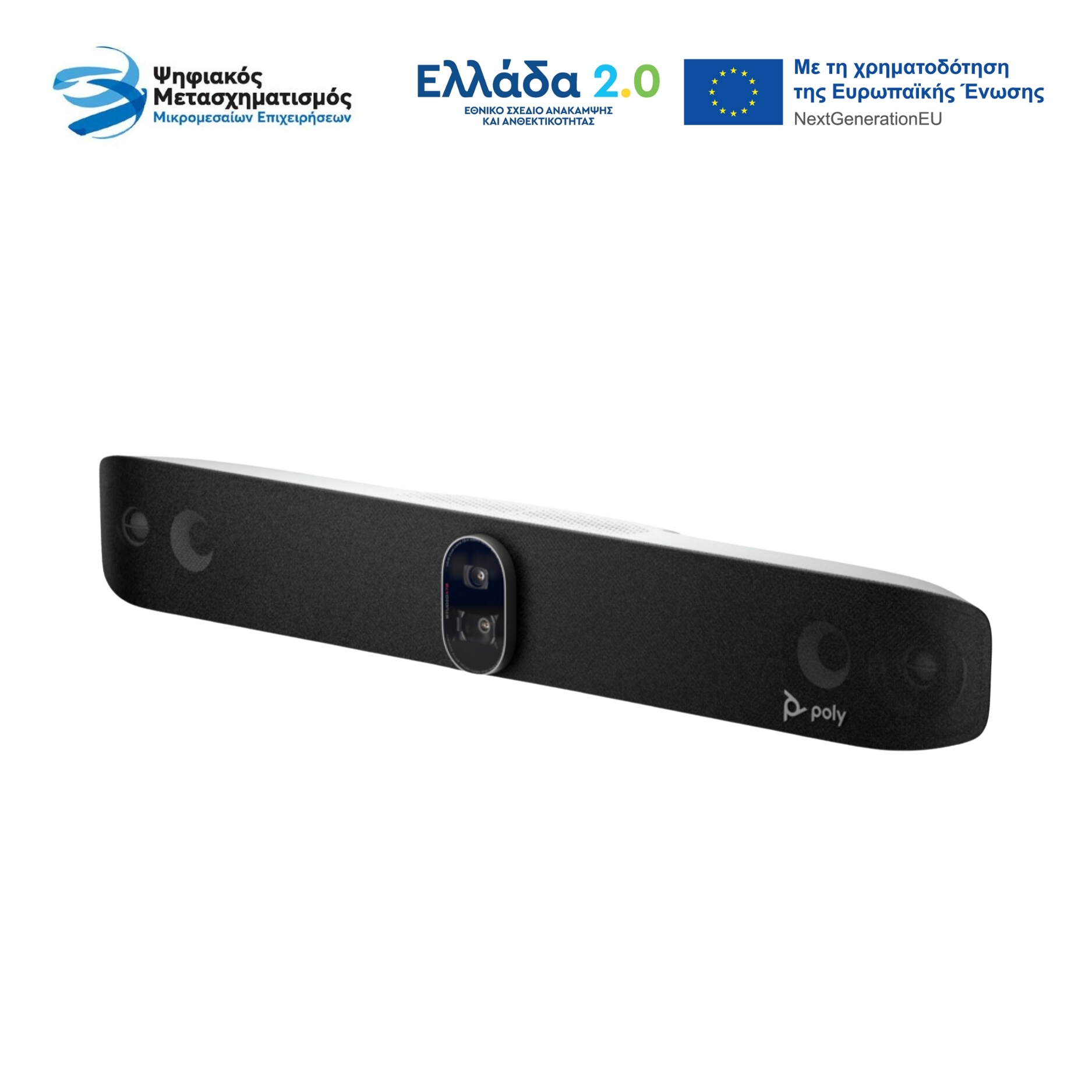

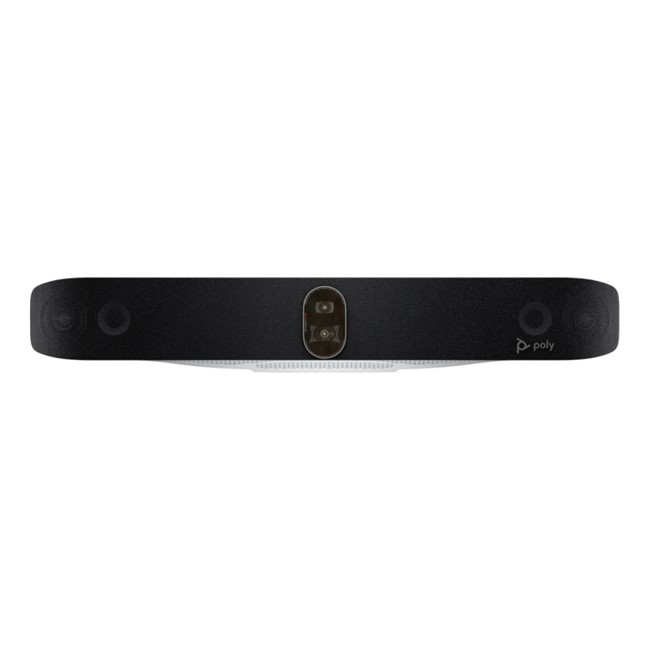

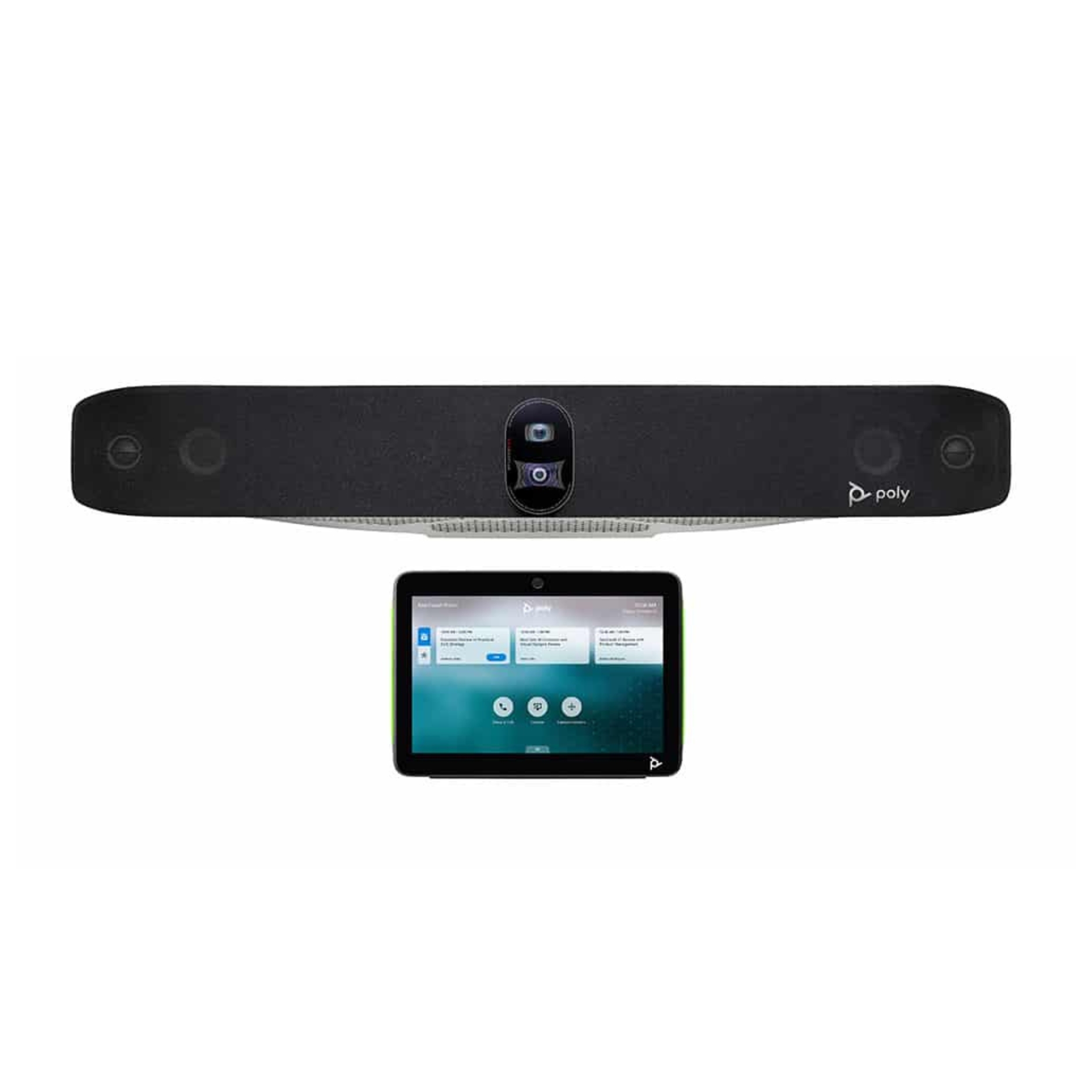

Poly Studio X72 All-In-One Video Bar with TC10 Controller Kit με τεχνολογία NoiseBlockAI και Poly DirectorAI
Εξοπλίστε μεγάλες αίθουσες με τη all in one λύση βίντεο Poly Studio X72, που διαθέτει προηγμένη τεχνολογία AV, επεκτασιμότητα και ευελιξία για να συμμετάσχετε σε σχεδόν κάθε βιντεοκλήση cloud.
Camera resolution |
Dual lens, 2160p, 4K UHD (3840 x 2160) |
---|---|
Camera type |
Dual-lens |
Certified collaboration software |
Microsoft Teams and Zoom
(pending for Google Meet and Tencent) |
Content video resolution (input) |
UHD (3840 x 2160); HD (1920 x 1080); WSXGA+ (1680 x 1050); UXGA (1600 x 1200); SXGA(1280 x 1024); WXGA (1280 x 768); HD (1280 x 720); XGA (1024 x 768); SVGA (800 x 600) |
Content video resolution (output) |
UHD (3840 x 2160); WUXGA (1920 x 1200); HD (1920 x 1080); WSXGA+ (1680 x 1050);SXGA+ (1400 x 1050); SXGA (1280 x 1024); HD (1280 x 720); XGA (1024 x 768) |
Diagonal field of view (dFoV) |
140° (wide); 78° (narrow) |
Horizontal field of view (hFoV) |
120° (wide); 70° (narrow) |
Microphone pickup range (metric) |
Up to 25 ft (7.62 m) |
Microphone type |
Two MEMS microphones; two second-order microphones |
Network capabilities |
IPv4; IPv6; 1x 10/100/1G Ethernet; Auto-MDIX; H.323 and/or SIP up to 6 Mbps in Poly App video mode; Polycom Lost Packet Recovery (LPR) technology; Dynamic bandwidth allocation; Reconfigurable MTU size; Web proxy support: basic, digest, and NTLM; Simple Ce |
People video resolution |
4K, 30 fps (TX and RX) from 2048 Kbps; 1080p, 30 fps from 1024 Kbps; 720p, 30 fps from 512Kbps |
Ports |
1 USB Type-C® 5Gbps signaling rate; 2 USB Type-A 5Gbps signaling rate; 1 line in; 1 line out; 1 line in (optional microphone); 2 HDMI-out 2.0 (video, 4K @ 30 Hz); 1 HDMI-in 1.4 (video and audio, 4K @ 30 Hz) |
Power supply type |
External; Auto sensing |
Video frame rate |
5–30 fps (up to 4K resolution at 15 fps in call) |
Video standards |
H.264 AVC; H.264 High Profile; H.265 |
Total camera resolution (megapixels) |
2 x 20 MP
|
Special features |
Poly DirectorAI with speaker framing, people framing, group framing |
What's in the box |
Ethernet cable; Wall mount kit; 2 HDMI cable; AC power adapter; Poly TC10 touch controller; Poly Studio X72 |
Wireless technologies |
Bluetooth® 5.0; Wi-Fi 802.11a/b/g/n/ac/ax (MIMO) Multi-channel Concurrency |
